Introducing the second generation for SATELLITE NAVI, the watch with built it GPS receiver that lets you pick up signals from GPs satellites for readout of your current position, and PC linking capabilities that let you exchange data with a personal computer. These feature-packed new models come in a configuration that is much more compact than the original SATELLITE NAVI. Features and functions include the following.
  • Current Position
    One-shot or continuous readings of your current position appear as latitude and longitude values on the display.
  • Landmark and Track Memory
    Memory can store up to 200 landmarks or 400 automatically recorded tracks (tracking your movement).
  • Graphical Navigation Display
    The direction and distance to your destination are shown graphically on the display to help get you where you are going.
  • Plot Screen
    With the Plot Screen you can see at a glance your plotted movement in relation to landmarks and intended route (start point, waypoints, destination).
  • Bearing and Speed Screen
    This screen, which available only during continual 1-second interval position readings, shows your current bearing and speed.
  • Altitude Readouts
  • PC Linking
  • 50M Water Resistant
  • Rechargeable Battery
    A built-in rechargeable lithium battery can be recharged with a charger attachment powered using an AC adapter or six separately available AAA-size alkaline batteries.
Computer System Requirements
The following are the minimum computer system requirements for using the PC link application.
  • Computer: IBM PC/AT or compatible
  • Operating System: Windows 95/98/Windows NT4.0 (Mac OS operation not supported)
  • COM Port: 9-pin communication port
  • Keyboard
  • Monitor: 800 x 600 16-bit high-color or greater (recommended)
  • CD-ROM drive
  • Mouse or other equivalent pointing device
  Windows and Windows NT are registered trademarks or trademarks of Microsoft Corporation in the U.S. and other countries.
Other company names and product names used herein may be registered trademarks or trademarks of their respective owners.
GLOBAL POSITIONING SYSTEM
  The letters "GPS" stand for "Global Positioning System", which is a system of 27 satellites developed by the United States. Data from these satellites can be used to determine any location on the globe.

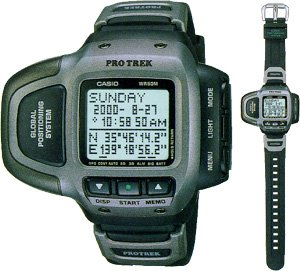

PRT-2GP
Resin





Bundled Items
  1. Interface / Charger Unit
    (serial connection)
  2. 9-pin serial cable (RS-232C)
  3. AC Adapter
  • CD-ROM with SATELLITE NAVI LINK software



Main Features
  • Current Position
    One-shot or continuous readings of your current position appear as latitude and longitude values on display.
  • Graphical Navigation Display
    The direction and distance to your destination are showed graphically in the display to help get you where you are going.
  • Plot Screen
    With the Plot Screen you can see at a glance your plotted movement in relation to landmarks and intended route (start point, waypoints, destination).



Newly Added Features
  • Much smaller configuration
    Size is reduced by 20% vertically, 8% horizontally, and 25% in thickness (all percentages approximate).

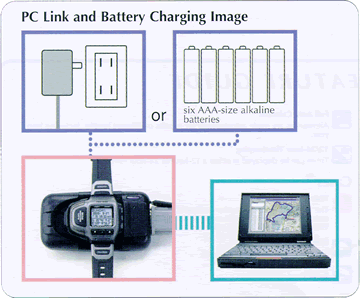

  • Charger attachment for battery charging
    Charger can also be powered using alkaline batteries.
  • PC linking
    Bundled SATELLITE NAVI LINK software lets you create track points and waypoints, and plan routes on your PC screen, and then download the data to the SATELLITE NAVI watch. You can transfer data from the watch back to your PC, including track points recorded by GPs position measurements.
  • 50M water resistant
    Use of a built-in lithium battery for power provides a higher level of water resistance.
  • Altitude readouts
    3-dimensional GPS capabilities also make it possible to determine your current altitude. Altitude readings are stored in memory and used for graphic of altitude changes over time.
  • Higher resolution display
    The display has been improved from 32 x 31 dots to 48 x 31 dots dots for easier viewing.
  • Multi-windowing
    Multi-windowing makes it possible to display current time and current position, destination pointer and position, or other data combinations on s singles screen.
  • Larger track memory
    Track memory capacity is increased from 100 records to 400 records.
